Auger Drive and Bit

Auger Drive and Bit Attachments

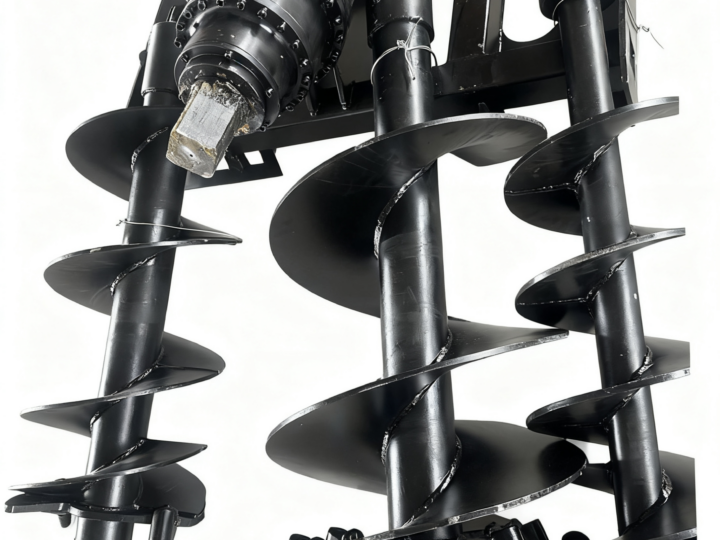

LeadMan Engineering Machinery Co., Ltd. introduces the Auger Drive and complementary Auger Bits — a robust drilling system for installing fence posts, planting trees, and boring utility holes. The system is available in three powerful drive models and a wide range of bit sizes, operating at a consistent working pressure of 16.0 MPa.

‍

✨ Key Highlights: Auger Drive (Drilling Machine)

‍🔹 Three Power Levels: Available with maximum torque ratings of 3500.0 N.m, 7000.0 N.m, and 10000.0 N.m.

🔹 Max Drilling Capacity: Capable of handling maximum hole diameters of 500.0 mm, 700.0 mm, and 900.0 mm respectively.

🔹 Consistent Pressure: All drives operate at a working pressure of 16.0 MPa.

🔹 Variable Flow Rate: Required flow rates range from 50-75 L/mm for the smallest model up to 70-150 L/mm for the largest model.

🔹 Robust Dimensions: All drive units share a length of 1160.0 mm, width of 1050.0 mm, and height of 490.0 mm.

🔹 Weights: Drive weights range from 240.0 kg to 320.0 kg.

‍

✨ Key Highlights: Auger Bits (Drill Bits)

‍🔹 Six Diameter Options: Available in popular sizes from 6″ (150.0 mm) up to 30″ (750.0 mm).

🔹 Consistent Length: All bits have a uniform length of 1000.0 mm.

🔹 Mounting: Smaller bits use a 50.8 mm hexagonal mounting interface, while larger bits use a square interface.

🔹 Weights: Bit weights range from 26.0 kg for the 6″ model up to 65.0 kg for the 30″ model.

‍
